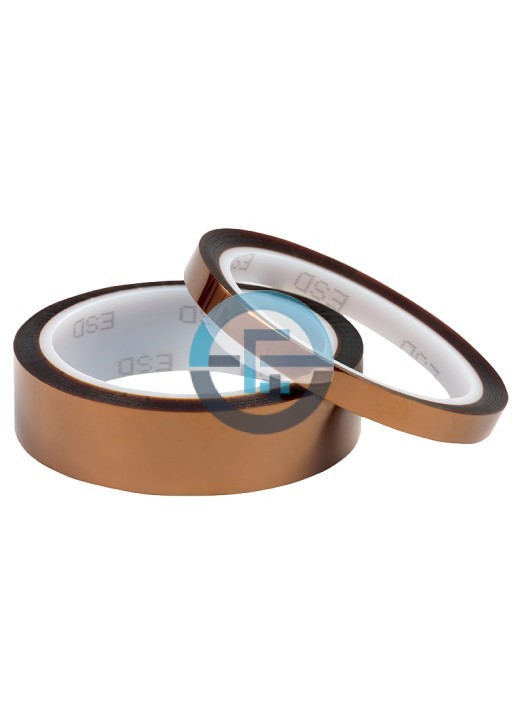

ESD Kapton Polyimide Tape 65 µm – High Temperature Masking – Eurostat
- Part number: 42-020-0006
ESD Kapton Tape – Eurostat
Eurostat ESD Kapton tape is designed for high temperature masking applications, such as wave and reflow soldering. Its low-static polyimide film limits charge generation during unwinding and application, and it is cleanroom compatible.
- ✓ Material: low-static polyimide (Kapton) film with silicone adhesive
- ✓ Thickness: 65 µm
- ✓ Adhesion to steel: 650 g/f/in (ASTM D3330)
- ✓ Tensile strength: 5 kg/f/c (ASTM D3759)
- ✓ Elongation: 63 % (ASTM D3759)
- ✓ Insulation class: 200 (UL file E203272)
- ✓ Chemical resistance: good (test at 180 °C for 1 hour in oven)
- ✓ Operating temperature: –73 °C to 260 °C (10 min) (ASTM D149)
- ✓ Static charge: < 50 V (at 50 % RH, 20 °C)
- ✓ Surface resistance: 10⁹ Ω (CCT method)
- ✓ Cleanliness: ISO 6 compliant
- ✓ Rolls: 76 mm core – 33 m length
- ✓ Shelf life: 1 year maximum, stored in a cool, dry place below 24 °C
