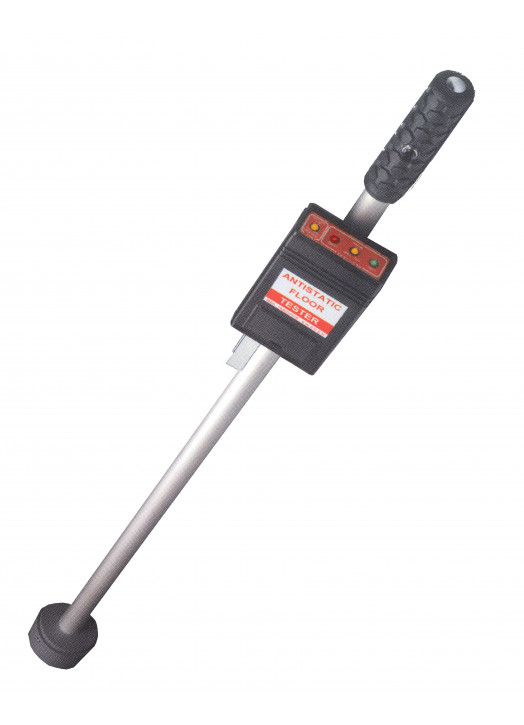

RP 50V-600 ESD Floor Tester – Probe on Stick, Adjustable Limits

RP 50V-600 ESD Floor Tester

The RP 50V-600 is a floor tester built as a probe on a stick with an attached indicator unit, for checking ESD floors in EPA zones. The top grounding point is covered by a plastic cap to prevent unintentional grounding during normal tests. The indication limits are set with two 20-turn potentiometers (P1, P2), with the probe placed on a metal plate.

• ✓ Test voltage: 100 V DC
• ✓ Internal series resistance: 4.3 MΩ
• ✓ Lower and upper limits adjustable (setting range ± 15 %)
• ✓ Measuring inaccuracy: < 5 %
• ✓ Test probe: conductive rubber, 50 Shore A, Ø 50 mm – probe pressure 5 kp
• ✓ Power: 9 V battery (6LR61 / 6AM6), approx. 50 mA in operation, automatic switch-off
• ✓ Low-battery warning light (yellow) below 7.5 V
• ✓ Holder for cable winder – cable winder with 8 m grounding cable available
• ✓ Dimensions: 102 × 9 × 9 cm – weight: 1.0 kg
