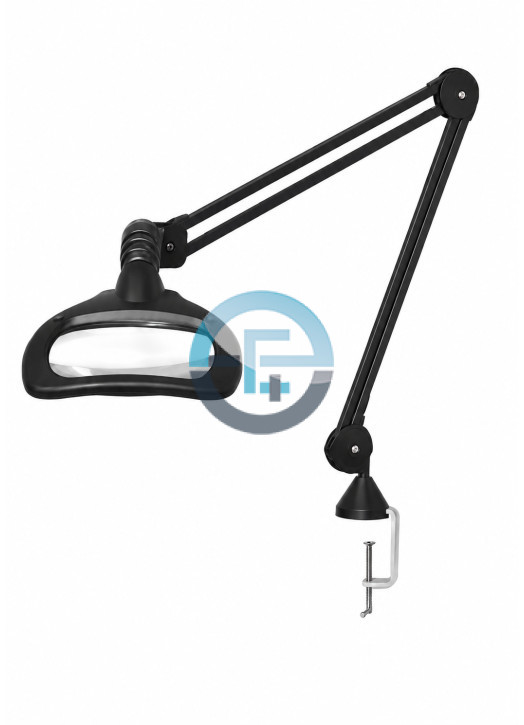

ESD LED Magnifying Lamp Wave T105
- Part number: 44-311-9333
ESD LED Magnifying Lamp Wave T105 for EPA Zones
The Eurostat ESD LED magnifying lamp Wave T105 lights and enlarges electronic components during inspection and assembly work in EPA zones. Its 3.5-dioptre primary lens delivers comfortable magnification, while its 4000 K LED lighting (764 lm, CRI > 80) renders colours faithfully at the workstation. Its fully ESD structure and low leakage current (0.1 mA) protect components sensitive to electrostatic discharge. Compliant with the IEC 61340-5-1 standard, it clamps to the edge of a bench via its CLA mount and suits electronics workshops, laboratories and precision assembly lines.
- ✓ ESD structure, black frame
- ✓ Primary lens: 3.5 dioptre (total magnification 285.7%)
- ✓ LED lighting: 4000 K, 764 lm, 59 lm/W, CRI > 80
- ✓ Power: 13 W, supply 220-240 V / 50-60 Hz
- ✓ Leakage current: 0.1 mA
- ✓ Illuminance: 4600 lux at focal distance (285 mm)
- ✓ Edge-clamp mount (CLA), weight 4.5 kg
- ✓ Max. ambient temperature: 25 °C
- ✓ Compliant with IEC 61340-5-1
Features
-
Conforms to
IEC 61340-5-1 standard
-
Color
Black
