Conductive ESD Polyurethane Foam - Eurostat
- Part number: 26-103-0019
Conductive ESD Polyurethane Foam for Cushioning & Shielding

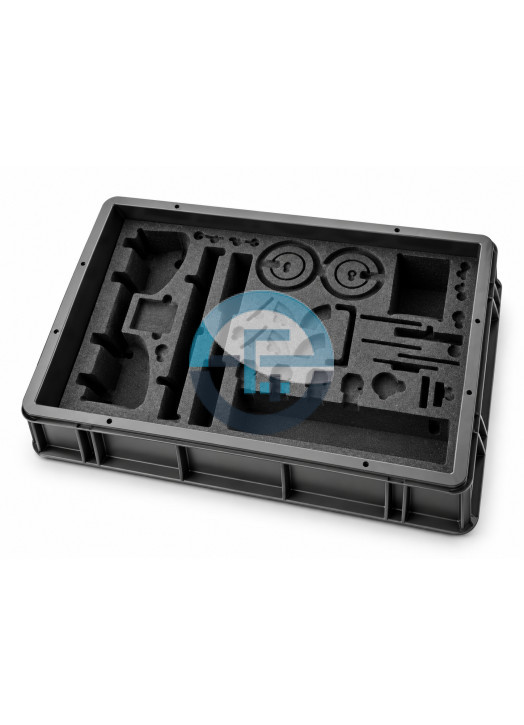

Eurostat conductive ESD polyurethane foam cushions and protects electronic components while boosting the shielding properties of the packaging. Its flexible open-cell structure absorbs shocks, and its conductive latex impregnation gives it a surface and volume resistance below 105 Ω and a decay time from 1000 V to 100 V in under two seconds. Compliant with IEC 61340-5-1 and the RoHS directive, it can be cut into custom inserts for boxes and transport cases. Note: this conductive foam should not be placed in direct contact with some ESD-sensitive devices — it is intended for cushioning and shielding rather than direct contact.
- ✓ Material: PU foam with conductive latex impregnation
- ✓ Colour: black, flexible open cells
- ✓ Surface resistance: < 105 Ω (IEC 61340-3-2)
- ✓ Volume resistance: < 105 Ω
- ✓ Decay time: 1000 V to 100 V in under 2 seconds
- ✓ Density: 24 kg/m³, hardness 120-140 N (BS4443), class A (BS3379)
- ✓ Tensile strength: 70 kPa, elongation at break 100%
- ✓ Ideal for cushioning, shock absorption and shielding in EPA packaging
- ✓ Not to be placed in direct contact with some ESD-sensitive devices
- ✓ Formats: 400x300 mm and 600x400 mm (3 and 6 mm thick), 2000x1000 mm sheets, custom cutting
- ✓ Compliant with IEC 61340-5-1 and RoHS
